VBV Lernwelt

Project setup is based on cookiecutter-django project template.

Run for development

# run vue vite dev server
cd client && npm run dev

# reset db and run django dev server
./prepare_server.sh

# if you only want to create some specific courses to speed up the script,
# you can use the '--courses' parameter
# see consts.py for available course ids
# ./prepare_server.sh --courses -3 -5

Installation

See .tool-versions file for used django and node version

You have to set up at least the following environment variables:

export IT_APP_ENVIRONMENT=local

See .env_secrets/local_daniel.env for more possible environment variables. Especially set correct values for POSTGRES_* and DATABASE_URL

Install git-lfs

brew install git-lfs
git lfs install

Server part

Install python dependencies:

pip install -r server/requirements/requirements-dev.txt

The "prepare_server.sh" script will create the database according to POSTGRES_* environment variables. It will also setup the tables for django and run the django development server.

# will run `migrate` and `runserver` etc...
./prepare_server.sh

# or async server
# uvicorn config.asgi:application --host 0.0.0.0 --reload

Client part

cd client

npm install

# run dev server
npm run dev

General part

Cypress is installed for client and server, so there is this package.json on the project root directory

# in project root directory
npm install

Git hooks

# install pre-push git hook
# add this line to the existing script in .git/hooks/pre-push
./git-pre-push.sh

Actions on Save

You can enable some useful "Actions on Save" in your JetBrains IDE:

Preferences -> Tools -> Actions on Save

• Reformat Code
• Optimize Imports
• Run eslint --fix
• Run prettier

Translations

We use (Locize)[https://locize.com] (see 1Password for credentials) together with (i18next)[https://www.i18next.com/] for translations on the Frontend.

Please make sure that the required environment variables are set (see ./env_secrets/local_daniel.env for the values):

• LOCIZE_PROJECT_ID
• LOCIZE_API_KEY

The master for translated files is on Locize! That means, that the app will take the translations/texts from Locize to show in the app. The files in ./client/locales are only used as reference and are not the master!

There are multiple ways on how to add new translations to Locize:

Process one: Let Locize add missing keys automatically

When running the app, it will automatically add the missing translation keys to Locize. There you can translate them, and also add the German translation.

Process two: Add keys manually

You can add the new keys manually to the German locale file in ./client/locales/de/translation.json

Then you can run the following command to add the keys to Locize:

Helpers

The following command could help find missing and/or unused keys. But manual review is still needed.

npx vue-i18n-extract report --vueFiles './src/**/*.?(ts|vue)' --languageFiles './src/locales/**/*.?(json|yml|yaml)'

npm run locize:sync

The command will add the keys and the German translation to Locize.

Bonus: Use the "i18n ally" plugin in VSCode or IntelliJ to get extract untranslated texts directly from the code to the translation.json file.

"_many" plural form in French and Italian

See https://github.com/i18next/i18next/issues/1691#issuecomment-968063348 for an explanation why this plural form is needed in French and Italian. But not in German and English.

Deployment and Environments

Prod Environment on Azure

Bitbucket Pipelines name: prod-azure https://my.vbv-afa.ch/

Deployment step on Bitbucket Pipelines will build the Docker container for Azure. It seems that right now, you have to make a manual step on Azure to use this new Docker container and update it on Azure. Please ask Lorenz for more information.

Prod Monitoring on New Relic

See docs/new-relic.md

CapRover vbv-develop

Bitbucket Pipelines name: develop https://vbv-develop.control.iterativ.ch/

Deployment happens automatically on every push to develop branch.

CapRover vbv-master

Bitbucket Pipelines name: master https://vbv-master.control.iterativ.ch/ Deployment happens automatically on every push to master branch.

CapRover myvbv-stage

Bitbucket Pipelines name: stage https://myvbv-stage.control.iterativ.ch/ https://myvbv-stage.iterativ.ch/

Deployment happens manually via Bitbucket Pipelines

CapRover myvbv (old prod)

Bitbucket Pipelines name: myvbv https://myvbv.control.iterativ.ch/ https://myvbv.iterativ.ch/

Deployment happens manually via Bitbucket Pipelines

CapRover feature branch deployment

You can deploy every feature branch to CapRover directly from Bitbucket Pipelines with a manual step.

When you run caprover_deploy.sh without arguments, it will deploy the current branch

./caprover_deploy.sh

Cleanup caprover feature branch deployments

# by default it will delete all vbv-feature-* apps
python caprover_cleanup.py

# or specify a specific app regex and delete without confirmation
python caprover_cleanup.py --automated -a 'vbv-bugfix*'

IntelliJ Configuration

• In the .idea/vbv_lernwelt.iml file change the module type to "PYTHON_MODULE".
• Add django facet in "Project Structure".
• Run configuration with "Python -> server.py" to have async debugging support.

Optional

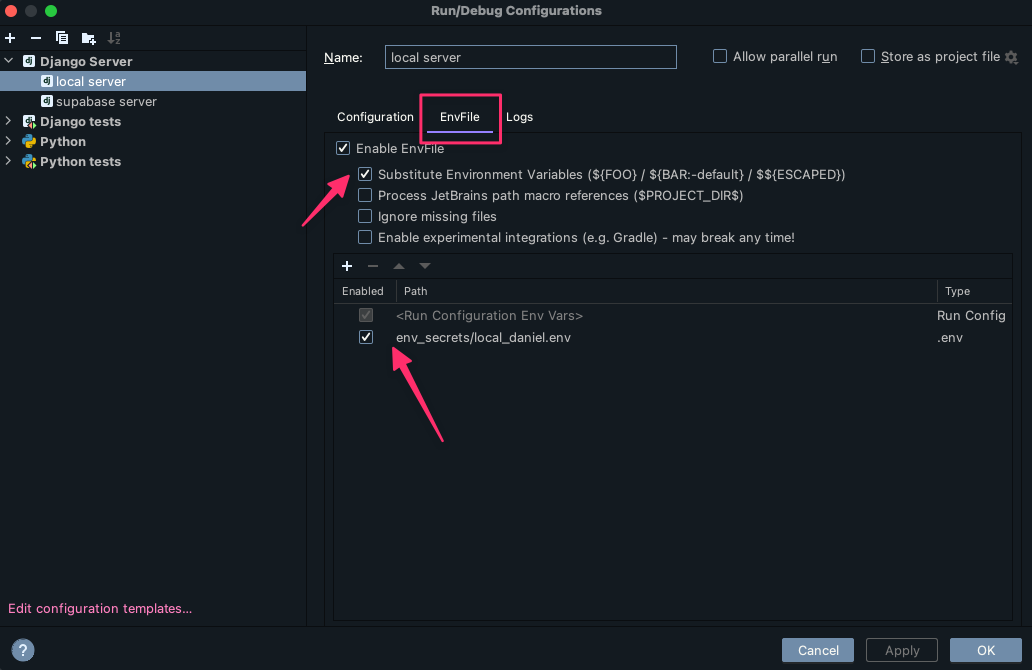

Install the EnvFile Plugin

Install the tailwind css Plugin from Jetbrains

currents.dev

This project uses currents.dev to run the Cypress tests concurrently.
The following steps were taken to set it up:

• Create a new project on currents.dev
• Add the generated projectId to the cypress configuration file
• Install @currents/cli as a dev dependency
• Add the following script to the package.json file:

  "cypress:ci": "currents run --parallel --record --key $CURRENTS_KEY",


• Create a new Bitbucket pipelines job that exports the CURRENTS_KEY and runs the cypress:ci script
• Refactor the pipeline steps so that the dependencies are installed first and then the other steps are run in parallel.
  You can then run multiple instances of the previously created job in parallel.
  See .bitbucket-pipelines.yml for an example.

💡 The number of cypress worker jobs depends on the number of cypress tests. Too many workers for too few tests will result in a lot of idle workers.

Frontend folder structure

There are some rules when it comes to the folder structure of the frontend.

• Every page should have its own folder in the pages folder.
• A page component name must have the Page suffix. E.g. MyPage.vue.
• A page is defined by being a routing target.
• The components solely being used in a page should be in the same folder as the page.

📦 client
└─ pages
   ├─ AbcPage.vue
   ├─ AbcButton.vue
   └─ AbcListTile.vue

GraphQL

python manage.py graphql_schema

On the client side you have to run the following command to update the generated code

npm run codegen

# `npm run dev` includes `npm run codegen` as step...
npm run dev

If you run npm run dev, the codegen command will be run automatically in watch mode.

For the ObjectTypes on the server, please use the postfix ObjectType for types, like LearningContentAttendanceCourseObjectType.

This will prevent problems with the hand written types on the client side, when npm run codegen will create the types automatically.

When you change something on the server side run the following command to update the graphql schema.

Open Questions

• The id field has to be a string?
• What about the generated types from codegen? Hand written types seem to be better.
• The functions in cacheExchange should be nearer the concrete implementation...
